MS Bars (Sariya): Types, Sizes, Uses, Weight & Price Guide

Choosing the right steel bar is important for construction, fabrication and general engineering work. Whether you are a contractor, builder, fabricator or retail customer, you need to consider the type, size, dimensions, weight and application before purchasing MS bars.

In India, the term MS bar can refer to different hot-rolled steel bar products. Depending on the application, customers may ask for round bars, square bars, flats or reinforcement bars. This guide explains the basics so you can select the right product without confusion.

What Are MS Bars?

MS bars are steel bars generally used for construction, fabrication, engineering and other applications where steel sections are required.Depending on their shape, MS bars can include:

• Round bars
• Square bars
• Flat bars
• Other structural bar sections

For structural steel, IS 2062 covers hot-rolled medium and high-tensile structural steel and includes products such as flats, bars, plates and structural sections. MS bars can be supplied in different grades, dimensions and lengths depending on the product specification and intended use.

MS Bars vs MS Sariya: Are They the Same?

The terms can sometimes be used interchangeably in everyday market conversations, but they are not always technically identical.

Sariya commonly refers to reinforcement steel bars used in reinforced concrete construction.

MS bar is a broader market term that can include round, square and other steel bars used for fabrication and engineering applications.

So, before buying, tell the supplier:

• Required bar type
• Diameter or dimensions
• Required length
• Grade/specification
• Quantity
• Application

This helps avoid getting the wrong steel product.

Important: For structural or reinforced-concrete work, the required steel specification should be confirmed with the engineer, contractor or project specification.

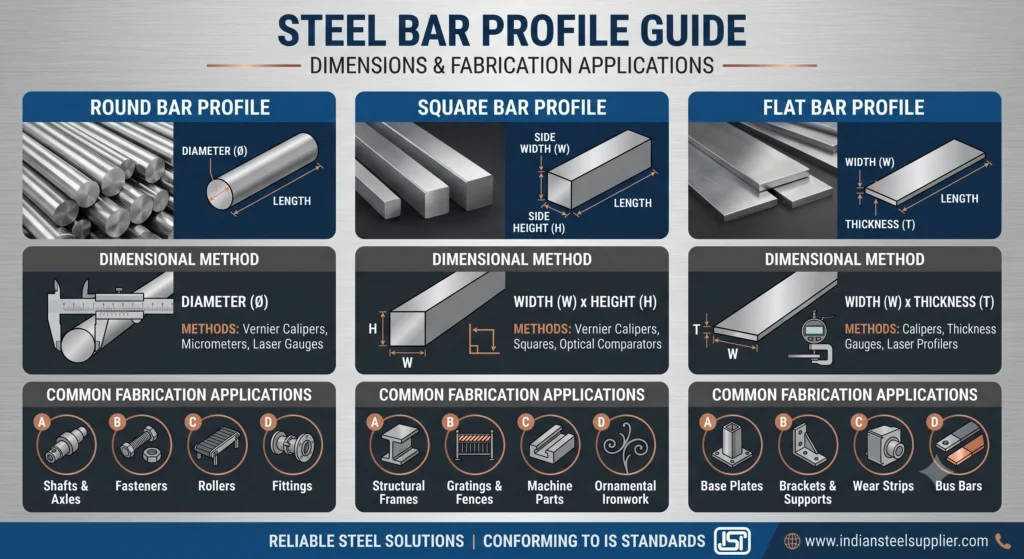

Types of MS Bars

1. MS Round Bar

MS round bars have a circular cross-section. They are commonly used for:

• Fabrication
• Shafts and pins
• General engineering
• Grills and gates
• Machinery-related applications
• General repair work

Round bars are normally specified by their diameter in millimetres.

For example:

12 mm round bar = 12 mm nominal diameter.

2. MS Square Bar

Square bars have four equal sides. They are commonly used in:

• Gates
• Grills
• Railings
• Fabrication
• Frames
• General engineering work

Square bars are normally specified by their side dimension, such as 10 mm × 10 mm or 20 mm × 20 mm.

3. MS Flat Bar

Flat bars are rectangular steel sections with a specified width and thickness.

For example:

50 mm × 6 mm flat bar

means:

• Width = 50 mm
• Thickness = 6 mm

Flat bars are frequently used in:

• Fabrication
• Brackets
• Frames
• Supports
• Base plates
• General engineering work

Common MS Bar Sizes and Dimensions

The exact available sizes depend on the product, manufacturer and applicable specification. For certain mild-steel and medium-tensile bar specifications, BIS documentation lists nominal round-bar diameters and square-bar side dimensions including 5, 6, 8, 10, 12, 16, 20, 22, 25, 28, 32, 36, 40, 45 and 50 mm. For structural steel products, dimensions and tolerances are governed by the relevant Indian Standards and product specifications. IS 1852, for example, covers rolling and cutting tolerances for hot-rolled steel products including round bars, square bars and flats.

Commonly Requested Sizes

MS Bar Type	Example Dimensions
Round Bar	8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Square Bar	10 × 10 mm, 12 × 12 mm, 16 × 16 mm, 20 × 20 mm
Flat Bar	25 × 3 mm, 40 × 5 mm, 50 × 6 mm, 75 × 10 mm

Note: These are examples of commonly requested dimensions, not a universal stock list. Availability should be confirmed before ordering.

MS Bar Weight Calculation

Weight is an important factor when purchasing steel because steel is commonly traded based on weight. A quick approximate calculation can help you estimate the weight before placing an order.

Round Bar Weight Formula

For a round bar:

Weight per metre ≈ D² ÷ 162

Where:

• D = diameter in mm
• Weight = approximate kg per metre

Example

For a 20 mm round bar:

20² ÷ 162

= approximately 2.47 kg per metre

For a 6-metre bar:

2.47 × 6

= approximately 14.82 kg

Actual supplied weight can vary within the applicable dimensional and weight tolerances.

Square Bar Weight Formula

For a square bar:

Weight per metre ≈ Side² × 0.00785

Example:

For a 20 mm × 20 mm square bar:

20 × 20 × 0.00785

= approximately 3.14 kg per metre

Flat Bar Weight Formula

For a flat bar:

Weight per metre ≈ Width × Thickness × 0.00785

Example:

For a 50 mm × 6 mm flat:

50 × 6 × 0.00785

= approximately 2.36 kg per metre

These calculations are useful for quick estimates. For commercial quantities, the actual supplied weight and applicable specification should be checked.

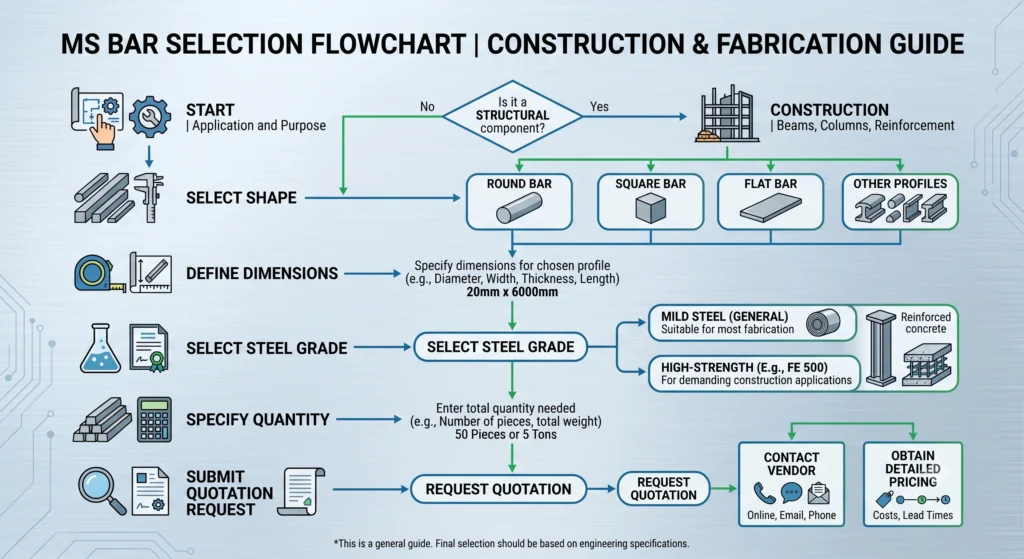

How to Choose the Right MS Bar Size

Choosing the correct size is not simply about selecting the thickest bar. The right dimension depends on the intended application, required strength and design.

Step 1: Identify the Application

First decide where the bar will be used.

For example:

• Gate fabrication
• Grill fabrication
• Structural support
• Machinery
• General fabrication
• Reinforced concrete construction

Different applications require different steel products.

Step 2: Select the Bar Shape

Choose between:

• Round
• Square
• Flat
• Other required sections

For example, a fabricator making a rectangular frame may need flats, while a shaft application may require a round bar.

Step 3: Check Dimensions

Check:

• Diameter
• Width
• Thickness
• Length
• Quantity

For structural products, dimensional tolerances are also important.

IS 1852 provides rolling and cutting tolerances for several hot-rolled steel products.

Step 4: Confirm Grade or Specification

For structural applications, confirm the grade and applicable Indian Standard with the project specification.

IS 2062 covers hot-rolled medium and high-tensile structural steel and includes grades such as E250, E275, E300, E350, E410 and others.

Step 5: Calculate Approximate Quantity

Before ordering, calculate the approximate total weight.

This helps contractors and fabricators estimate:

• Material requirement
• Transportation
• Approximate purchase value
• Project material cost

Common Uses of MS Bars

MS bars are used across construction, fabrication and engineering applications.

Construction

Depending on the product and specification, steel bars can be used in:

• Structural work
• Supports
• Frames
• General construction applications

For reinforced concrete, the appropriate reinforcement-bar specification should be followed rather than assuming every MS bar is suitable as reinforcement.

Fabrication

Fabricators commonly use steel bars for:

• Gates
• Grills
• Railings
• Frames
• Brackets
• Supports
• General fabrication

Engineering Applications

Bars can also be used for:

• Machine components
• Pins
• Shafts
• General engineering work

The correct grade and dimensions depend on the engineering requirement.

Factors Affecting MS Bar Price in India

There is no single fixed MS bar price that applies everywhere.

The final rate can change according to several factors.

1. Steel Market Conditions

Steel prices can change due to raw-material costs, supply, demand and broader market conditions.

For example, Indian steelmakers have recently faced higher coking-coal costs, which can affect production economics.

2. Grade

Different grades and specifications can have different prices.

3. Size and Section

The required diameter, width and thickness affect the material quantity and therefore the total purchase value.

4. Quantity

Bulk orders may receive different commercial rates compared with small retail purchases.

5. Brand or Mill

Different manufacturers and mills may quote different rates based on product specification, availability and commercial terms.

6. Location and Transportation

The delivered price can also depend on freight and delivery requirements.

How to Calculate Your MS Bar Purchase Cost

A simple estimation method is:

Estimated Cost = Total Weight × Rate per kg

Hypothetical Example

Suppose your requirement is:

• Total steel quantity = 500 kg
• Supplier rate = ₹X per kg

Then:

Estimated material cost = 500 × ₹X

The actual rate should be confirmed with the supplier on the day of purchase.

For this reason, instead of relying on an old online price list, it is better to request a current quotation.

How to Buy Quality MS Bars

Before purchasing MS bars, check the following:

• Correct bar type
• Correct dimensions
• Required grade/specification
• Surface condition
• Approximate/actual weight
• Required quantity
• Length
• Applicable test certificate or documentation where required

BIS documentation for relevant steel products includes requirements around workmanship, dimensions, weight and testing.

For structural steel covered by IS 2062, the standard addresses requirements including dimensions, workmanship and mechanical properties.

MS Bars for Contractors, Builders and Fabricators

For contractors and builders, choosing the correct material can help prevent unnecessary wastage and procurement problems.

A good purchase enquiry should clearly mention:

Product + Size + Grade/Specification + Quantity + Length + Delivery Requirement

Example Purchase Enquiry

Required: MS Round Bar, 20 mm diameter, required length as per project requirement, quantity 500 kg.

This is much clearer than simply asking:

“Bhai MS sariya chahiye.”

For fabricators, dimensions are particularly important because the wrong size can affect cutting, welding and final fabrication.

Quick MS Bar Selection Checklist

Before placing your order, confirm:

• Application
• Bar shape
• Diameter/width
• Thickness
• Length
• Grade/specification
• Quantity
• Required documentation
• Current market rate
• Delivery requirement

Key Takeaways

• MS bars are available in different shapes such as round, square and flat bars.
• “Sariya” and “MS bar” are not always technically interchangeable.
• Always select the bar according to its intended application.
• Dimensions and applicable tolerances are important when purchasing steel.
• Approximate weight can be calculated using standard steel-weight formulas.
• MS bar prices change with market conditions, grade, size, quantity and location.
• For structural applications, follow the applicable project specification and Indian Standard.
• For current pricing, request a fresh quotation instead of relying on an outdated rate.

Frequently Asked Questions

1. What are MS bars?

MS bars are mild-steel bar products used for construction, fabrication, engineering and other applications. They can be available in shapes such as round, square and flat bars.

2. What is the difference between MS bar and sariya?

“Sariya” commonly refers to reinforcement steel bars, while MS bar is a broader term that can include different bar shapes used in fabrication and engineering. The exact product should be confirmed before purchase.

3. How is MS round bar weight calculated?

A commonly used approximate formula is:

Weight per metre ≈ Diameter² ÷ 162

The result is approximately in kg/m when diameter is entered in millimetres.

4. What are common MS round bar sizes?

Commonly requested sizes can include 8 mm, 10 mm, 12 mm, 16 mm and 20 mm, among others. Exact availability depends on the supplier, manufacturer and applicable specification.

5. What factors affect MS bar price?

Price can depend on steel market conditions, grade, dimensions, manufacturer, quantity, location, freight and current availability.

6. Which MS bar size should I choose?

The correct size depends on the application, required load/design, fabrication requirement and project specification. For structural work, follow the engineer’s or project’s specified grade and dimensions.

7. Are MS bars available in different shapes?

Yes. Depending on the product range, MS bars can be available as round bars, square bars and flat bars, among other steel sections.

8. How can I get the current MS bar price?

MS steel rates can change with market conditions. The best approach is to contact the supplier with the required type, size and quantity and request a current quotation.
